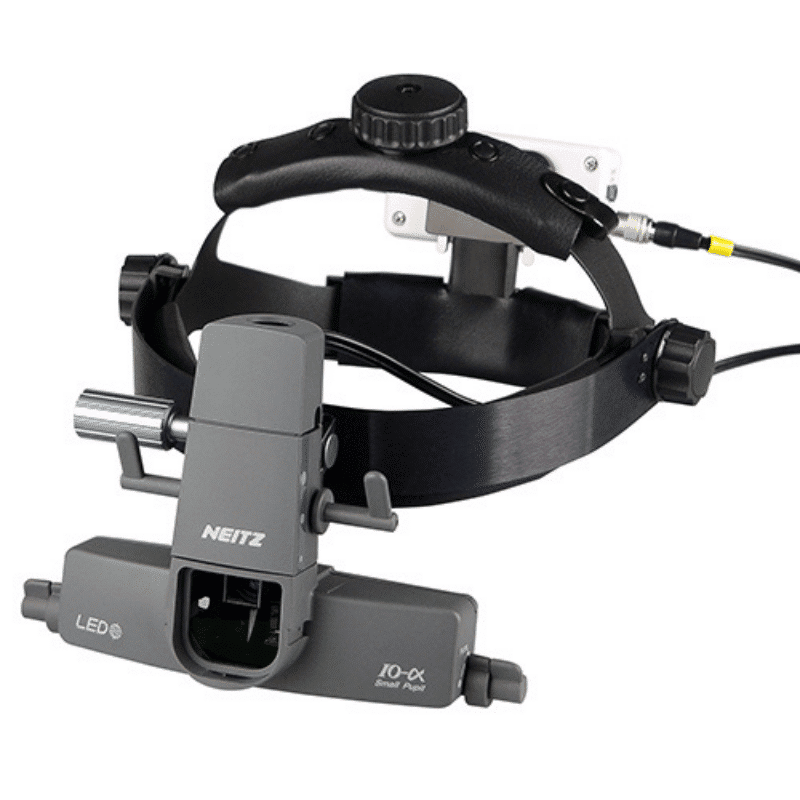

Neitz Binocular Indirect Ophthalmoscope

Unique optical design enables you to observe complex fundus

– LED with incandescent colour used
– Clear illumination without filament shadow
– Stereoscopic observation even for small pupils by moving the illumination and observation systems separately
– Large effective visual field for observation of flat pupils
– 17 hours of continuous illumination with the energy-efficient LED


Contents (Set 4)

IO-α LED, battery pack, AC adapter, extension cable, belt hook, wiring ring, teaching mirror, detachment chart, carrying case

Light Source


Voltage during Illuminating

DC3.2V 0.7W


UV, Red-free, Cobalt Blue

Maximum Light Intensity

Approx. 600 lx
(using UV filter, at 500 mm distance)

Minimum Pupil Diameter

2 mm

Diameter of the Illumination Field

Switchable in three steps: 19 mm, 50 mm, and 80 mm
(at 500 mm distance from the illuminating mirror)


164 mm x 111.5 mm x 58 mm
(excluding headband)


480 g
